15kg koka granulu vffs maisu veidojošā pildījuma noslēgšanas iepakošanas mašīna

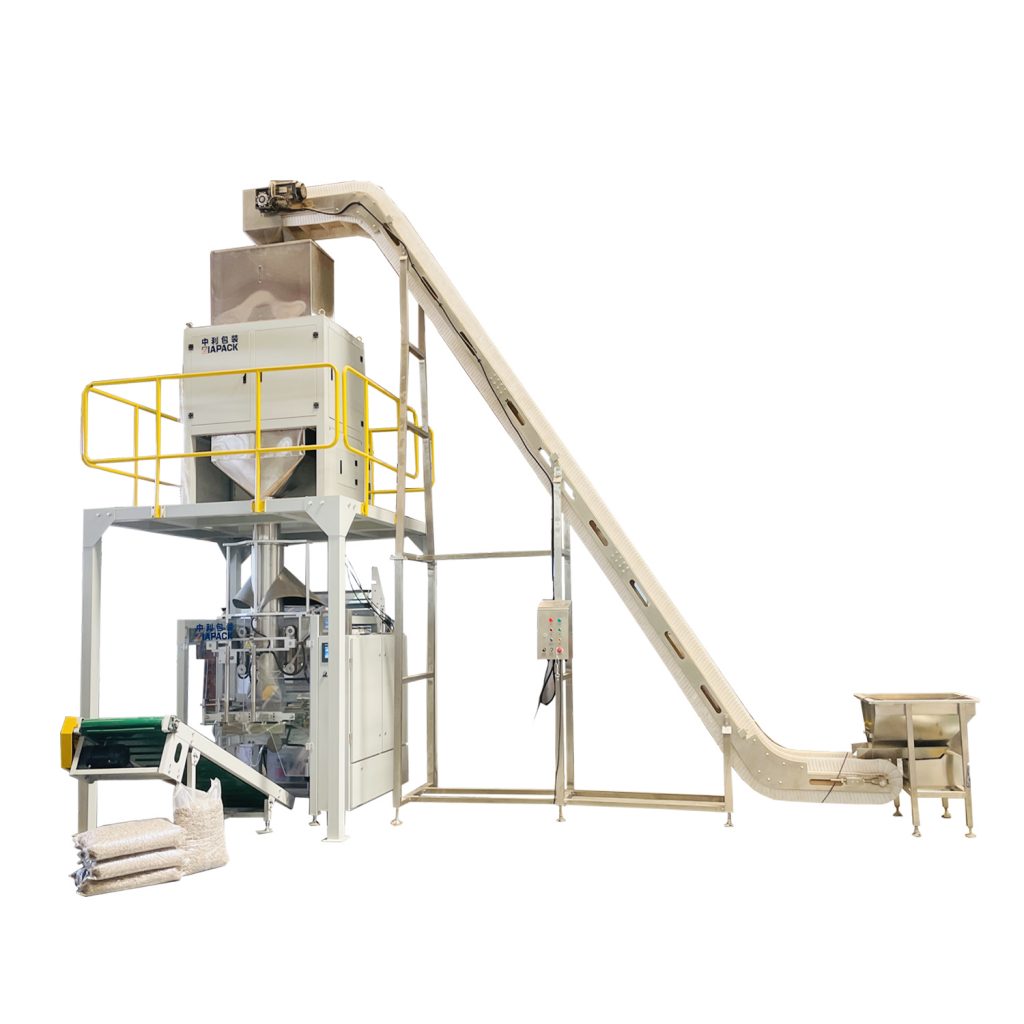

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Ievads:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Tehniskie parametri:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Nepieciešamais saspiestais gaiss: 0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

Serdes iekšējais diametrs: 75 mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Galvenās īpašības un īpašības:

• Plašs maisiņu klāsts: spilvenu un gumijas maisiņi.
• Liels ātrums: 20-50 maisi/min
• Viegli lietojams: PLC kontrolieris un krāsains skārienekrāns, skārienekrānā kļūdas indikācija.
• Viegli pielāgot: tikai aptuveni 10 minūtes, lai mainītu dažādus maisiņus.
• Frekvences kontrole: ātrumu var regulēt, frekvences pārveidošanu diapazonā.
• Augsta automatizācija: bez svara svēršanas un iepakošanas procesā mašīna tiek trauksma automātiski, ja tā nav.
• Drošība un higiēna:
• Nav filmas, mašīna signalizēs.
• Iekārtas trauksmes signāls un apturēt, ja nepietiekams gaisa spiediens.
• Drošības aizsargi ar drošības slēdžiem, mašīnu signalizācija un apturēšana, kad tiek atvērti drošības aizsargi.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

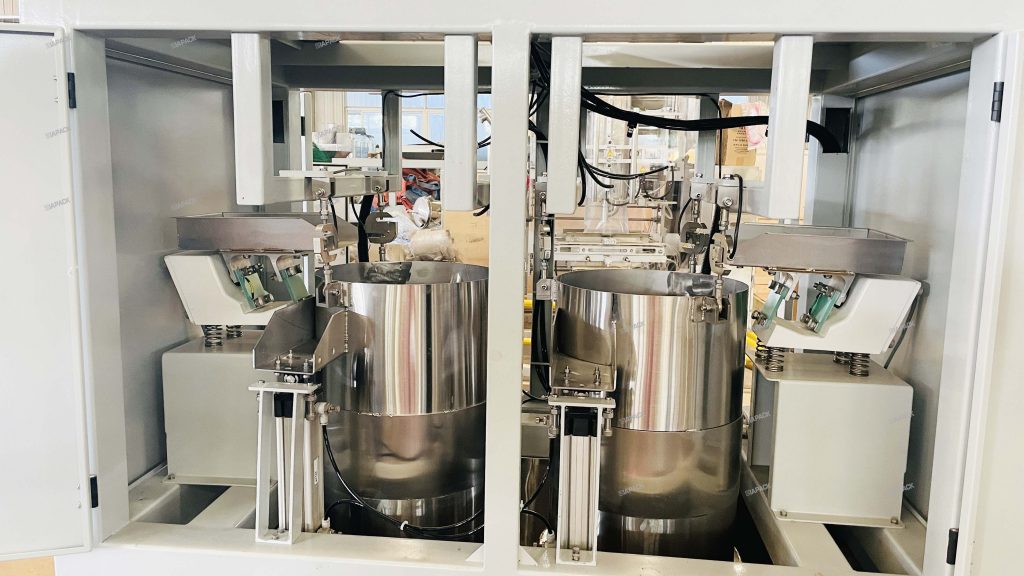

• ZLC2-15k double bucket weighing machine

  Ievads:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Iespējas:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
