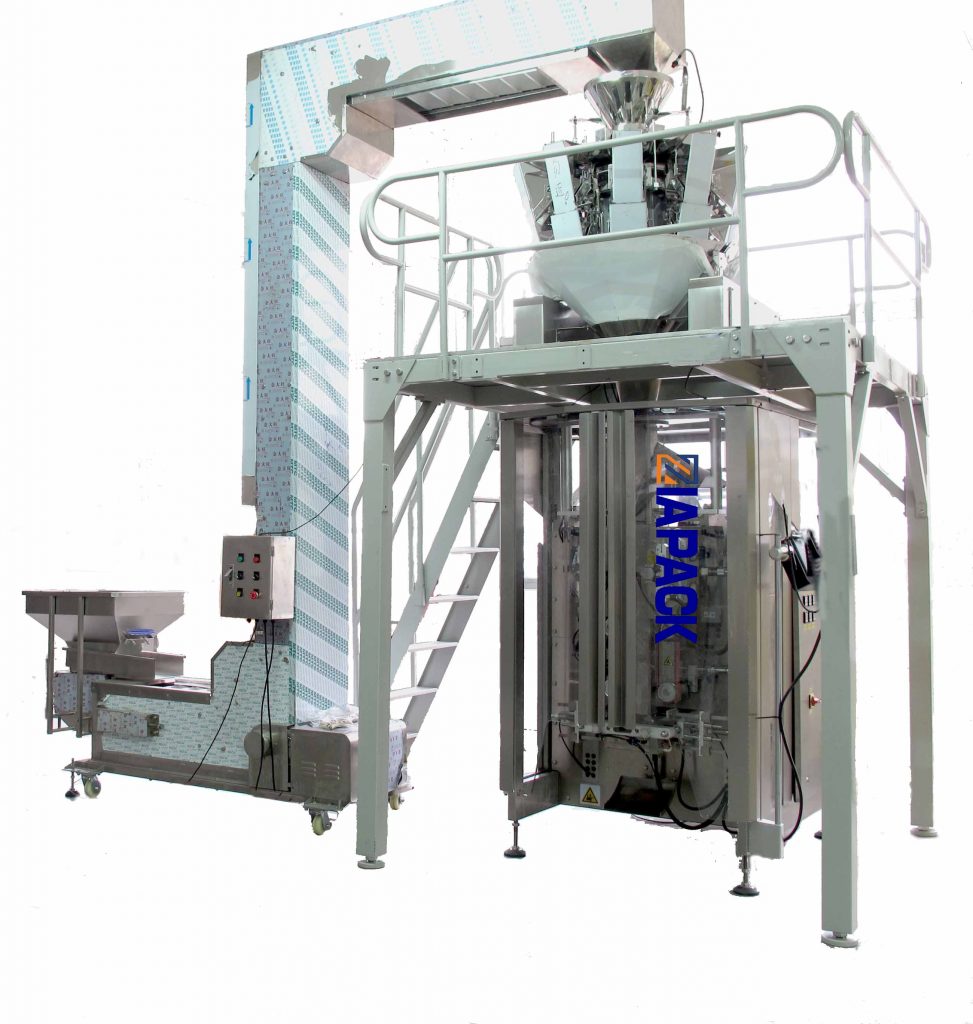

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. The finished bag with square bottom and vertical side .Can be stand on the table with pretty shape .This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient .All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
Tehniskie parametri:
Packing speed(MAX): 20-30 bags/min(depend on the weight from 250 gram-1000 gram)
Bag type: Square bottom bag (gusseted bag with square bottom )
Bag size: Front width: 80~190 mm; Side width: 25~60 mm Length: 100~380 mm
Saspiestā gaisa patēriņš: 0,6 MPa 350 L/min
Electric requirement: 380V/5.5 kW 50 Hz
Iespējas :
Film transport system and horizontal Jaw motion both drive by Panasonic motor
Droša ātra caurules un apkakles nomaiņa, vienkārši izvelkot kronšteinu
Optoelektronika nosaka filmas stāvokli uz apkakles, lai koriģētu filmas ekspedīciju
Elektriskais fotosensors, kas ievada krāsu kodu, lai kontrolētu somas garumu
Unikāla pneimatiska filma-spoles bloķēšanas struktūra, lai izvairītos no filmas novirzīšanas
Neatkarīga temperatūras regulēšana
Dažādu veidu karsējamas noslēdzamas laminētas plēves, proti, PE/BOPP, CPP/BOPP, CPP/PE PE/NYLON,
Alumīnija folijas bāzes var darbināt uz mašīnas.
Iepakošanas mašīnu var izmantot arī polietilēna plēves blīvēšanai, mainot atbilstošo aprīkojumu
